Catalog Number - 47240-40-C

47240-40-C ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing enhanced flow capacity, extended tubing length, and visual differentiation for organized fluid routing.

Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used for visual identification, ensuring minimal contamination risk and compatibility with sensitive analytical workflows.

Supplied on a convenient 25 meter spool, this configuration is ideal for high‑volume laboratories, OEM integration, and custom system builds.

Precision Dimensions – Optimized for Higher Flow

• Inner Diameter (ID): 0.010" (0.25 mm)

• Outer Diameter (OD): 1/16" (1.6 mm)

• Wall Thickness: 0.675 mm

• Tolerance (ID & OD): ± 0.10 mm

✅ Larger ID provides higher flow rates and reduced restriction compared to smaller ID tubing

Black Pigmentation – Visual Line Identification

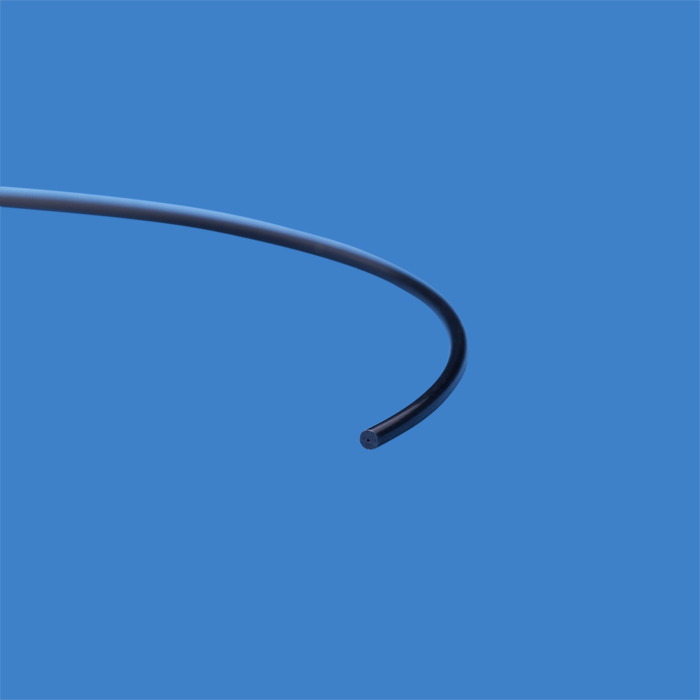

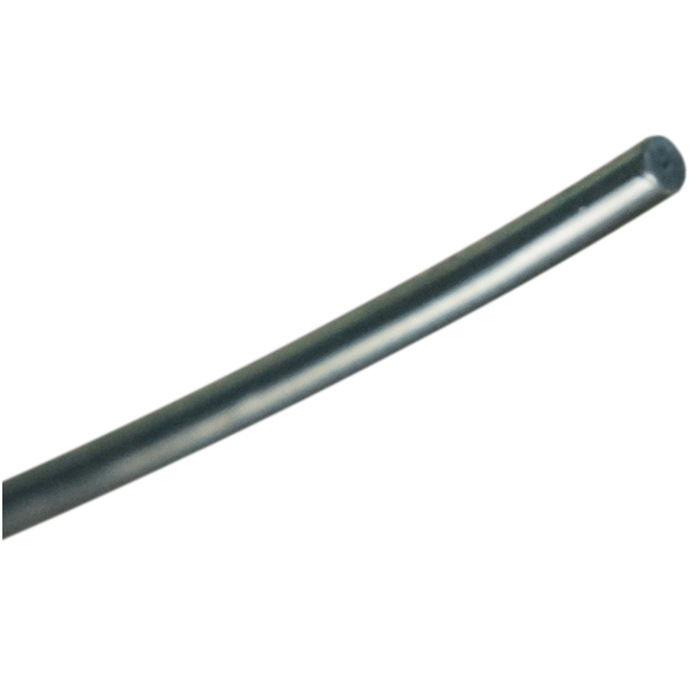

• Black‑pigmented PTFE tubing

• Supports:

  • Clear identification of fluid lines

  • Organization of multi‑line systems

  • Simplified maintenance and troubleshooting

✅ Used for visual identification only (no functional or standardized color coding implied)

Low‑Pressure Chromatography Performance

• Designed for low‑pressure fluid paths, including:

  • Pre‑pump mobile phase delivery

  • Post‑detector waste lines

  • General solvent transfer

• Pressure Rating: 800 psi (55.2 bar)

✅ Ensures stable and reliable solvent handling over extended tubing runs

Virgin PTFE Construction – High Purity & Inertness

• Manufactured from 100% virgin PTFE

• No additives (except trace pigment)

• Chemically inert and non‑reactive

✅ Minimizes contamination risk in LC‑MS and high‑sensitivity applications

Broad Chemical & Thermal Resistance

• Resistant to:

  • Organic solvents

  • Acids and bases

  • Aqueous mobile phases

• Maximum Temperature: 260 °C

✅ Suitable for demanding and continuous-use laboratory environments

Micro‑Porous Structure – Application Consideration

• PTFE tubing contains micropores allowing slight gas exchange

• Important when working with:

  • Degassed solvents

  • Oxygen‑sensitive workflows

✅ Consider alternative materials where gas impermeability is critical

Flexible & Durable Design

• Flexible for long‑distance routing and system integration

• Durable for repeated lab use

• Maintains clear visual distinction across complex fluid paths

✅ Supports efficient installation and maintenance

Spool Format – High Volume Efficiency

• Supplied on a 25 meter spool

• Ideal for:

  • Bulk laboratory use

  • Custom cut lengths

  • OEM manufacturing

✅ Reduces handling complexity and improves workflow efficiency

Regulatory Compliance

• Compliant with:

  • RoHS EU Directive 2011/65/EU

  • Amendment (EU) 2015/863

✅ Meets global environmental and safety standards

Available Length Options

✅ Select the length appropriate for your application:

• 25 meter spool (this item)

• 1 meter roll

• 3 meter roll

• 5 meter roll

• 10 meter roll

✅ Custom cut lengths available through Customer Service

Typical Applications

• Extended HPLC mobile phase delivery (pre‑pump)

• Long solvent waste lines

• Multi‑line systems requiring visual differentiation

• Low‑pressure fluid transfer

• OEM and instrument integration

Important Usage Notes

• Not intended for high‑pressure HPLC pump head connections

• Black pigmentation is for visual identification only

• Consider permeability when using degassed or oxygen‑sensitive solvents

• Use proper fittings to ensure secure, leak‑free connections
